Details

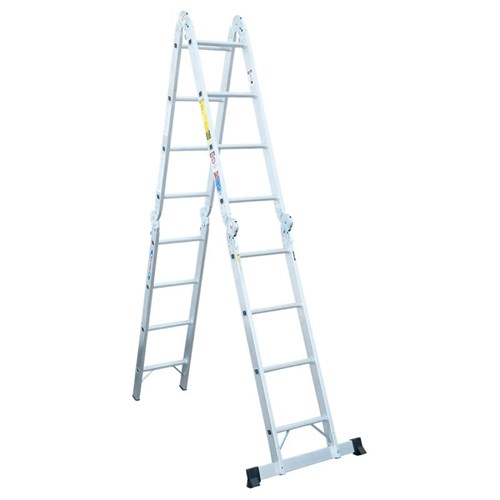

The M1 Series folding aluminum MultiLadder is designed for one or two person jobs. This Type IA ladder with a duty rating of 300 lbs., has a 3-position Multi-Lok® Hinge that allows for 18 positions or applications. Includes slip-resistant, multi-directional rungs and feet.
Performance Overview
| Load Capacity | Type | Material | Number of Positions |
| 300 lbs. | Type IA Duty Rating | Aluminum | 18 |
Specifications
- Load Capacity: 300 lbs.
- Type: Type IA Duty Rating
- Material: Aluminum
- Stepladder Height: 8'
- Extension Height: 16'
- Scaffold Height: 4'
- Closed Height: 52-5/8"
- Number of Positions: 18
- Approx. Cu. Ft. Per Unit: 5.2
- Approx. Shipping Wt. Lbs.: 39.5
Dimensions
- Rails Dimension: 2-1/2"
- Flange Deminsion: 1"
- Rungs Dimension: 1-1/4"
Additional M1 Series Models
| Model No. | Stepladder Height | Extension Height | Stair Height | Scaffold Height | Number of Positions | Approx. Cu. Ft. Per Unit |
| M1-6-12 | 6' | 12' | 3' | 40-5/8" | 4.0 | 33.5 |
| M1-8-16 | 8' | 16' | 4' | 52-5/8" | 5.2 | 39.5 |
